RWD Motorsport Heavy Duty Pinto Clutch Cover
RWD Motorsport Heavy Duty Pinto Clutch Cover
£275.10

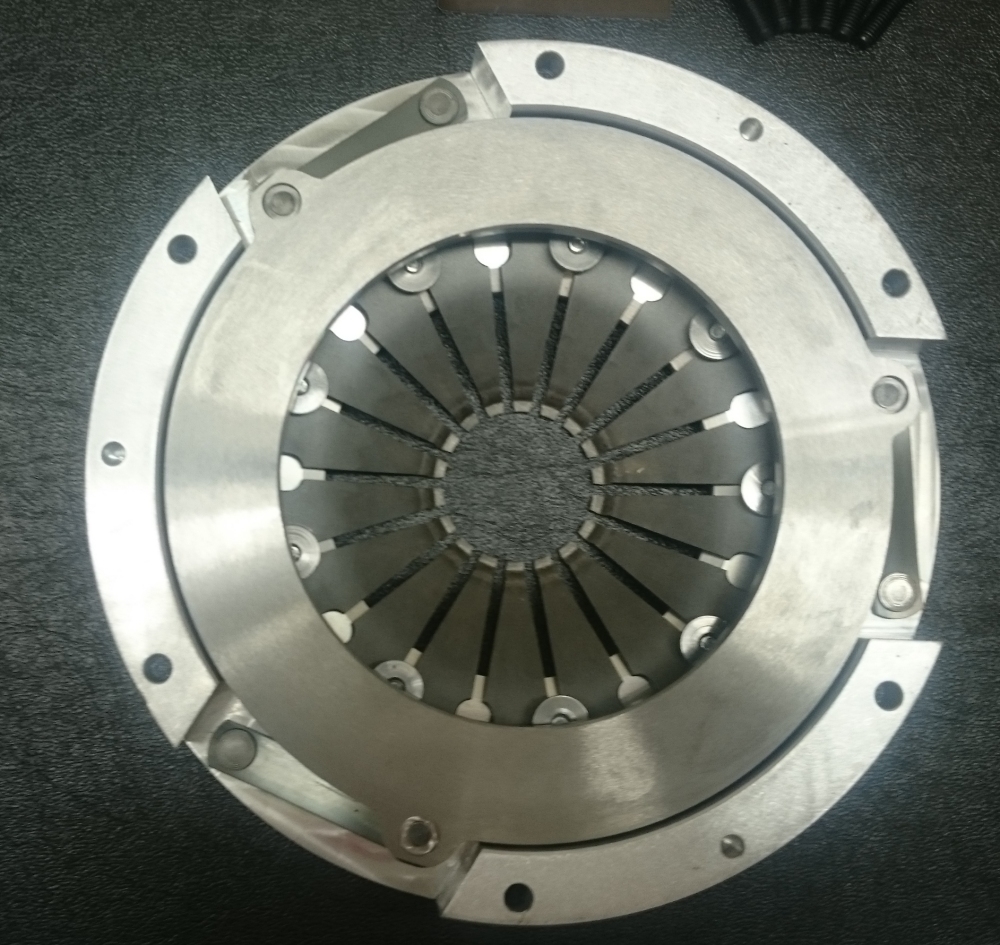

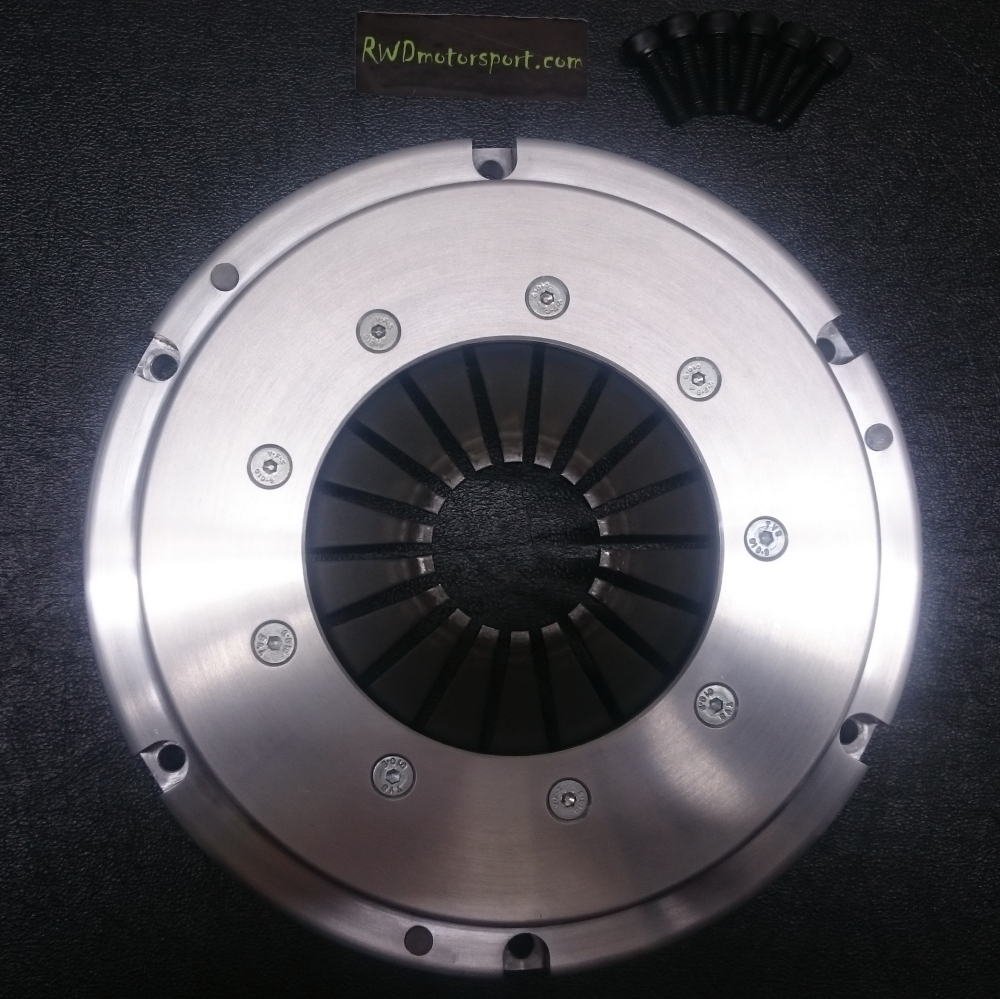

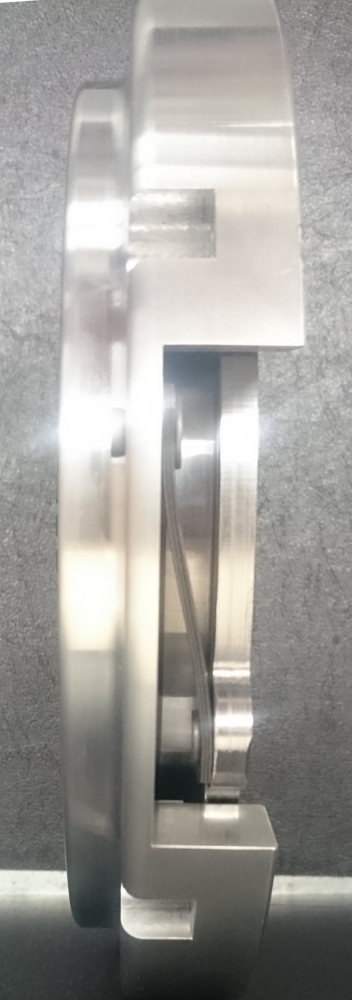

Heavy duty organic clutch cover assembly by RWD Motorsport. Fits our Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate and Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate.
Specially made for RWD Motorsport from heavy duty aluminium. Direct replacement for the difficult to get hold of AP Racing clutch cover CP2511-1
Suitable for use with any Ford Type 9 or 4 speed gearbox and engine combination including:
Duratec Engine to Ford Gearbox Cable Clutch Bellhousing (if using Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate)
Duratec Engine to Ford Gearbox Hydraulic Clutch Bellhousing(if using Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate)
Pinto or Cosworth to Borg Warner T5 Bellhousing
RS2000 Type Bellhousing (cable clutch)
Sierra Direct Replacement Cable Clutch Bellhousing
Sierra Direct Replacement Hydraulic Clutch Bellhousing
VW / Audi 1.8 Litre to Ford Type 9 Bellhousing
Specification and Application
| Components | Heavy Duty Aluminium Clutch Pressure Plate |
| Clutch Torque Capacity | 280 ft lb / 380 Nm * |
| Clutch Friction Disc Thickness | 0.33″ / 8.5mm |
| FrictionDisc Diameter | 8.5″ / 215mm |
| Splines | 23 |
| Input Shaft Diameter | 1″ or 25.4mm |
| Height from crankshaft face to clutch diaphragm fingers | 58mm |
| Height from crankshaft face to clutch diaphragm fingers when worn | Approximately 62mm |
| Engine | Any engine that either uses the Ford Pinto 8 1/2″ clutch or that has sufficient diameter within the standard cover to accept a 215mm clutch |
| Compatible Lightened Flywheels | Ford Duratec Lightweight Steel Flywheel – 8 1/2″ Clutch Plate Ford Zetec E Lightweight Steel Flywheel Vauxhall 2.0XE Lightweight Steel Flywheel Ford Cover Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate Ford Zetec SE / Sigma Lightweight Steel Flywheel Pinto Clutch |
| Gearbox | Ford 4 speed (rocket) Ford Type 9 Borg Warner T5 ** Borg Warner T5 information |
| Applications | Kit cars Rally / race Fast road |
* Using a heavy duty clutch friction plate with equivalent torque capacity
** SIerra Cosworth 23 spline 1″ input shaft only
Additional information
| Weight | 4 kg |
|---|
