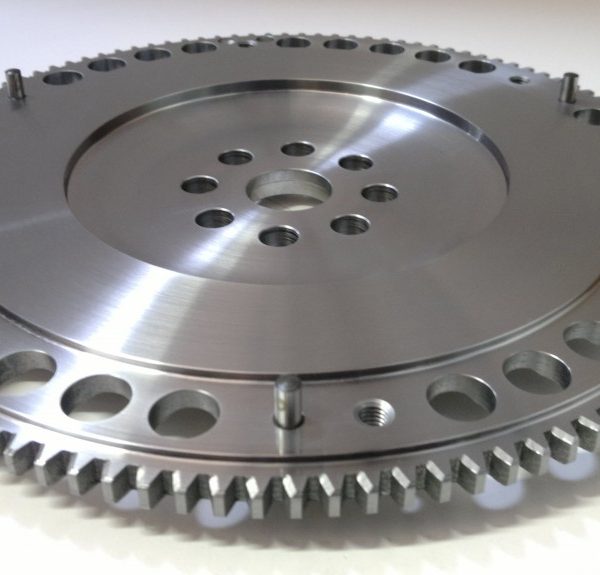

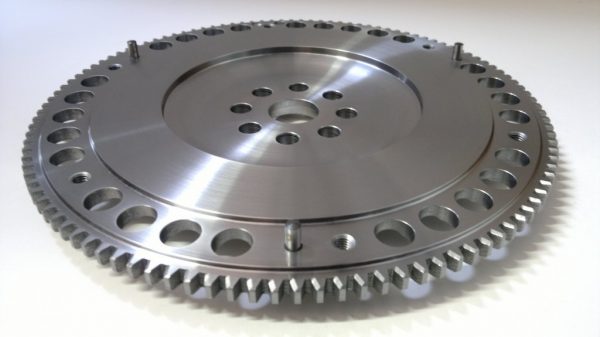

Honda K20 Lightweight Steel Flywheel – Standard Clutch Plate
Honda K20 Lightweight Steel Flywheel – Standard Clutch Plate
£318.32
Honda K20 lightweight steel flywheel to suit standard clutch cover and plate. With integral starter ring (ring gear is machined into the flywheel)
Download a Fitting Guidance Notes document.
Specification and Application
| Component | Lightweight Steel Flywheel |
| Type | Replaces standard flywheel Integral starter ring |
| Weight | 3.2Kg |
| Engines | Honda K20 or K24 |
| Clutches | Use with our Honda K20 and K24 Heavy Duty Clutch Cover and Friction Disc Kit |
| Starter Motor | Honda K20 |
| Applications | Kit Cars Rally/Race – MkI/II Escort, Sierra, Lotus Cortina Drift Cars Classic Ford Fast Road |
Note:
You are able to use standard bolts with this flywheel but you will need to shorten them slightly so that they don’t bottom out when you tighten them (due to thinner flywheel face).
Please see the Honda K20 Engine page for more information.
Additional information
| Weight | 2.9 kg |
|---|
