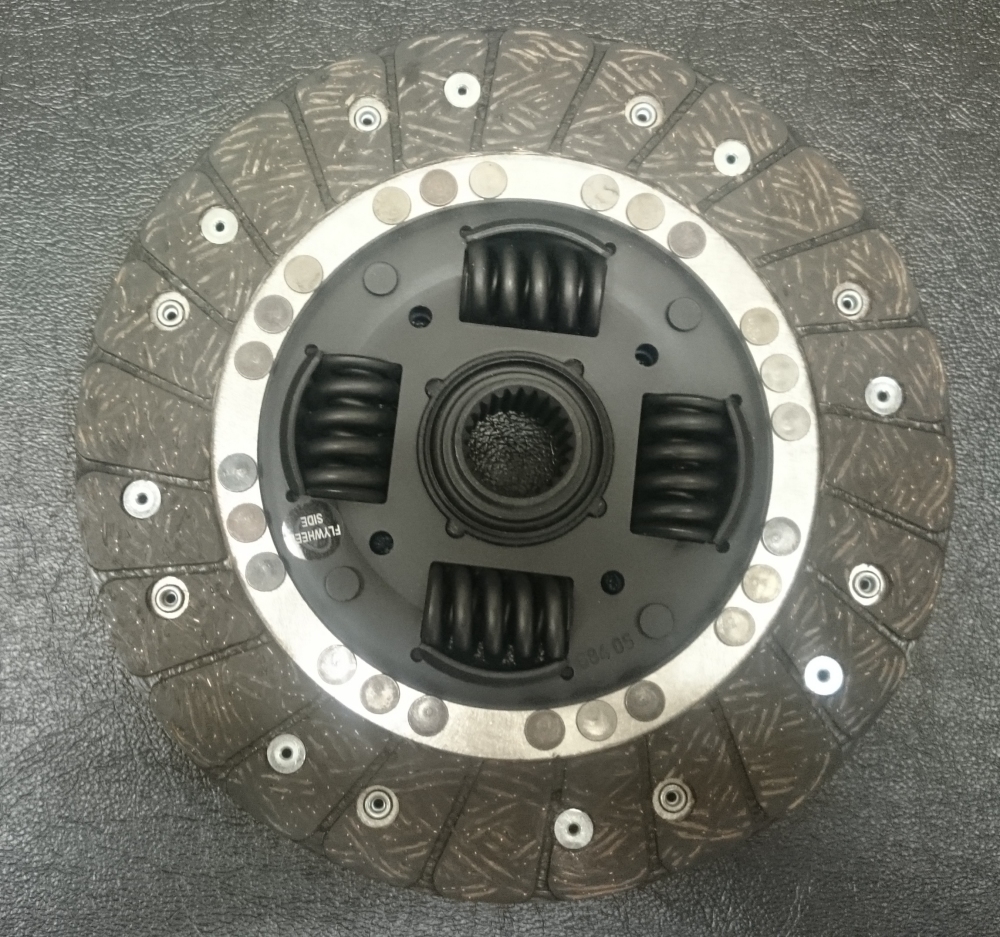

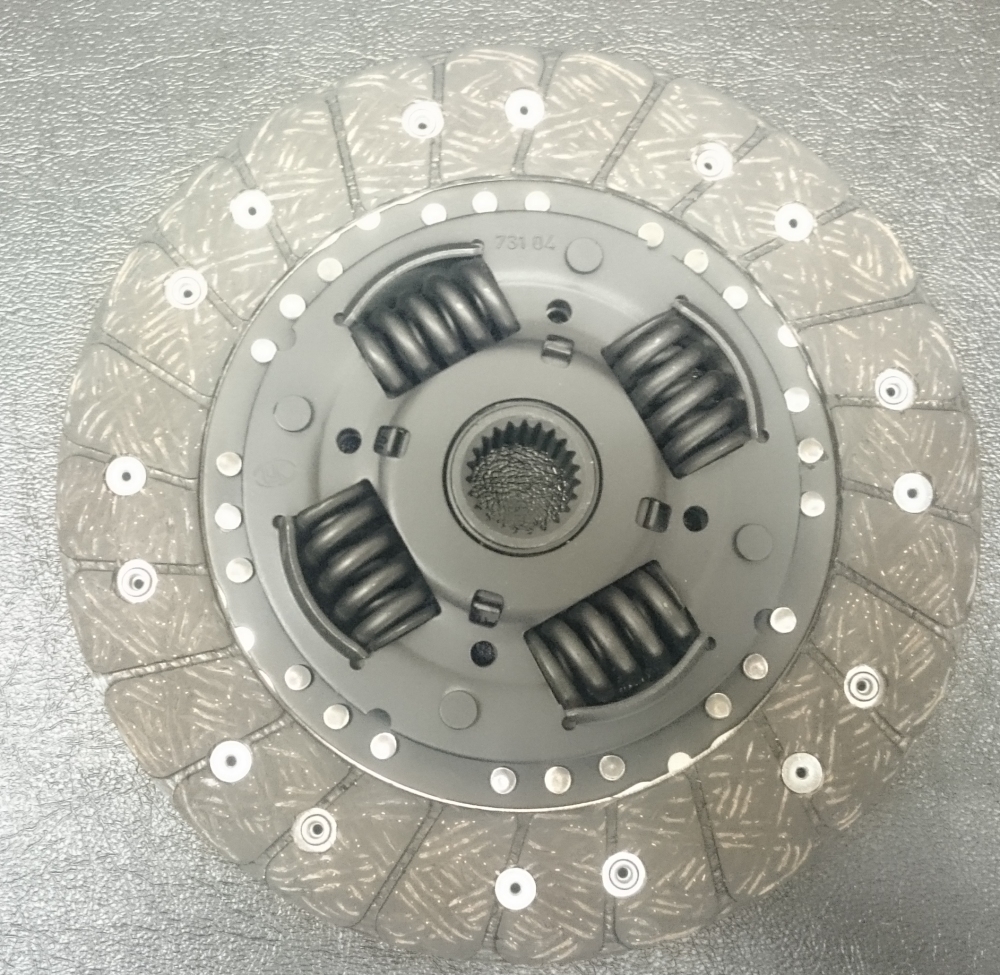

RWD Motorsport Heavy Duty Pinto Clutch Friction Plate
RWD Motorsport Heavy Duty Pinto Clutch Friction Plate
£126.00
Heavy duty organic clutch plate by RWD Motorsport. Fits Pinto applications and our Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate.
Recommended to be used together with our RWD Motorsport Heavy Duty Clutch Cover.
Heavy duty clutch friction disc specially made for RWD Motorsport. Direct replacement for the difficult to get hold of AP Racing clutch disc CP5351-1.
Suitable for use with any Ford Type 9 or 4 speed gearbox and engine combination including:
Duratec Engine to Ford Gearbox Cable Clutch Bellhousing (if using Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate)
Duratec Engine to Ford Gearbox Hydraulic Clutch Bellhousing(if using Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate)
Pinto or Cosworth to Borg Warner T5 Bellhousing
RS2000 Type Bellhousing (cable clutch)
Sierra Direct Replacement Cable Clutch Bellhousing
Sierra Direct Replacement Hydraulic Clutch Bellhousing
VW / Audi 1.8 Litre to Ford Type 9 Bellhousing
Specification and Application
| Components | Heavy Duty Organic Clutch Plate |
| Clutch Torque Capacity | 280 ft lb / 380 Nm |
| Clutch Friction Disc Thickness | 0.314″ / 8.0mm |
| FrictionDisc Diameter | 8.5″ / 215mm |
| Splines | 23 |
| Input Shaft Diameter | 1″ or 25.4mm |
| Engine | Any engine that either uses the Ford Pinto 8 1/2″ clutch or that has sufficient diameter within the standard cover to accept an 8 1/2″ / 215mm clutch |
| Compatible Lightened Flywheels | Ford Duratec Lightweight Steel Flywheel – 8 1/2″ Clutch Plate Ford Zetec E Lightweight Steel Flywheel Vauxhall 2.0XE Lightweight Steel Flywheel Ford Cover Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate Ford Zetec SE / Sigma Lightweight Steel Flywheel Pinto Clutch |
| Gearbox | Ford 4 speed (rocket) Ford Type 9 Borg Warner T5 * Borg Warner T5 information |
| Applications | Kit cars Rally / race Fast road |
* SIerra Cosworth 23 spline 1″ input shaft only
Additional information
| Weight | 1.5 kg |
|---|
Related Products

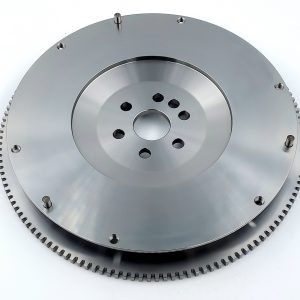

Ford Zetec SE / Sigma Lightweight Steel Flywheel Pinto Clutch
Ford Zetec SE / Sigma Lightweight Steel Flywheel Pinto Clutch
Ford Zetec SE / Sigma Lightweight Steel Flywheel Pinto Clutch
Ford Zetec SE / Sigma Lightweight Steel Flywheel Pinto ClutchFord Ford Zetec SE (Sigma)* lightweight steel flywheel Pinto clutch to suit For 8.5″ Pinto clutch cover. Designed to replace the OE flywheel. Machined from billet steel, our flywheels feature an integral ring gear. Much lighter than the original flywheel.

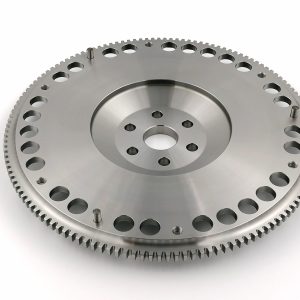

Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate
Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate
Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate
Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch PlateFord Pinto lightweight steel flywheel to suit Ford 8 1/2″ clutch plate. Machined from billet steel, our flywheels feature an integral ring gear. Much lighter than the original flywheel this flywheel is suitable for a standard or uprated Ford 8 1/2″ clutch.

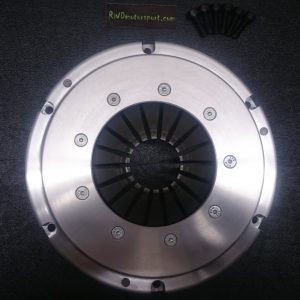

RWD Motorsport Heavy Duty Pinto Clutch Cover
RWD Motorsport Heavy Duty Pinto Clutch CoverHeavy duty organic clutch cover assembly by RWD Motorsport. Fits our Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate and Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate.

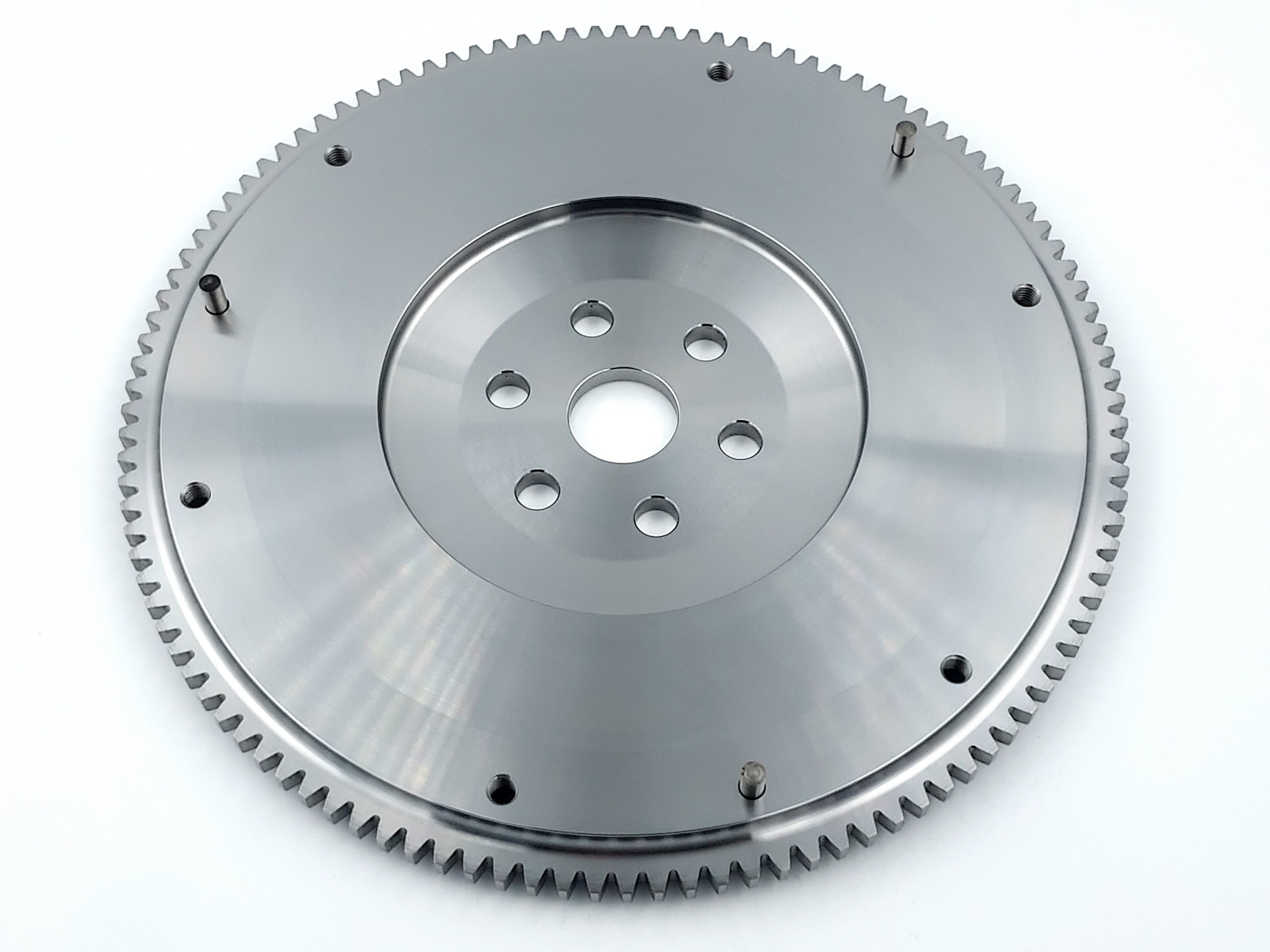

Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate
Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate
Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate
Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate2.0 or 2.3* Ford Duratec lightweight steel flywheel to suit Ford 8 1/2″ clutch plate. With integral starter ring (ring gear is machined into the flywheel).
Products that you might find interesting
TTV twin plate 7 1/4″ (184mm) paddle clutch
TTV twin plate 7 1/4″ (184mm) paddle clutchTTV Racing Twin Plate Race Clutch 184mm (7.25″)
RWD Motorsport Heavy Duty Pinto Clutch Cover
RWD Motorsport Heavy Duty Pinto Clutch CoverHeavy duty organic clutch cover assembly by RWD Motorsport. Fits our Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate and Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate.
Ford Clutch Alignment Tool
Ford Clutch Alignment ToolClutch alignment tool for the 8.5″ Xflow and Pinto clutches. Also suitable for the 240mm Cosworth clutches with the 1″ x 23 spline input shaft.

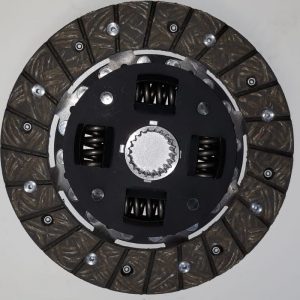

Toyota 3 Cylinder Engine Heavy Duty 190mm Clutch Friction Plate Sprung Centre
Toyota 3 Cylinder Engine Heavy Duty 190mm Clutch Friction Plate Sprung Centre
Toyota 3 Cylinder Engine Heavy Duty 190mm Clutch Friction Plate Sprung Centre
Toyota 3 Cylinder Engine Heavy Duty 190mm Clutch Friction Plate Sprung CentreHeavy duty Toyota 190mm clutch friction disc with a 28mm diameter 21 spline centre hub.

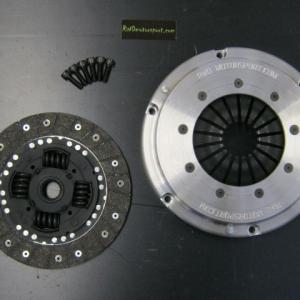

Honda K20 Heavy Duty Clutch Cover and Friction Disc Kit
Honda K20 Heavy Duty Clutch Cover and Friction Disc Kit
Honda K20 Heavy Duty Clutch Cover and Friction Disc Kit
Honda K20 Heavy Duty Clutch Cover and Friction Disc KitThis high quality heavy duty clutch kit kit includes an uprated clutch cover,retaining bolts and friction disc
Toyota 1KR-FE Engine to Toyota W Series Gearbox Clutch and Cover
Toyota 1KR-FE Engine to Toyota W Series Gearbox Clutch and Cover
Toyota 1KR-FE Engine to Toyota W Series Gearbox Clutch and Cover
Toyota 1KR-FE Engine to Toyota W Series Gearbox Clutch and CoverConnects the Toyota 1KR-FE engine to the range of Toyota W Series gearboxes
Upsell Products

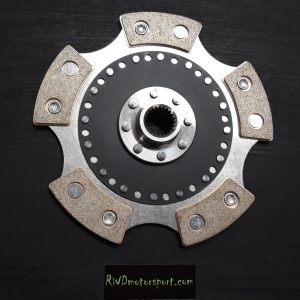

Solid Centre 5 Paddle Heavy Duty 8 1/2 Inch Clutch Friction Plate
Solid Centre 5 Paddle Heavy Duty 8 1/2 Inch Clutch Friction Plate
Solid Centre 5 Paddle Heavy Duty 8 1/2 Inch Clutch Friction Plate
Solid Centre 5 Paddle Heavy Duty 8 1/2 Inch Clutch Friction PlateHeavy duty 8 1/2″ (215mm) clutch friction disc with a 23 tooth 1″ spine pattern
Heavy Duty Pinto Clutch Cover and Solid Centre 5 Paddle Disc Kit
Heavy Duty Pinto Clutch Cover and Solid Centre 5 Paddle Disc Kit
Heavy Duty Pinto Clutch Cover and Solid Centre 5 Paddle Disc Kit
Heavy Duty Pinto Clutch Cover and Solid Centre 5 Paddle Disc KitThis high quality heavy duty clutch kit kit includes an uprated clutch cover, release bearing and friction disc

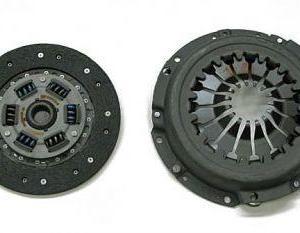

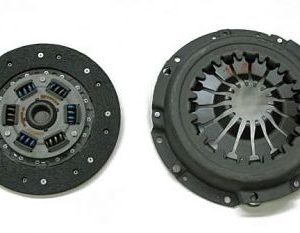

Heavy Duty Pinto Clutch Cover and Organic Clutch Plate
