Heavy Duty Pinto Clutch Cover and Organic Clutch Plate
Heavy Duty Pinto Clutch Cover and Organic Clutch Plate
£399.00

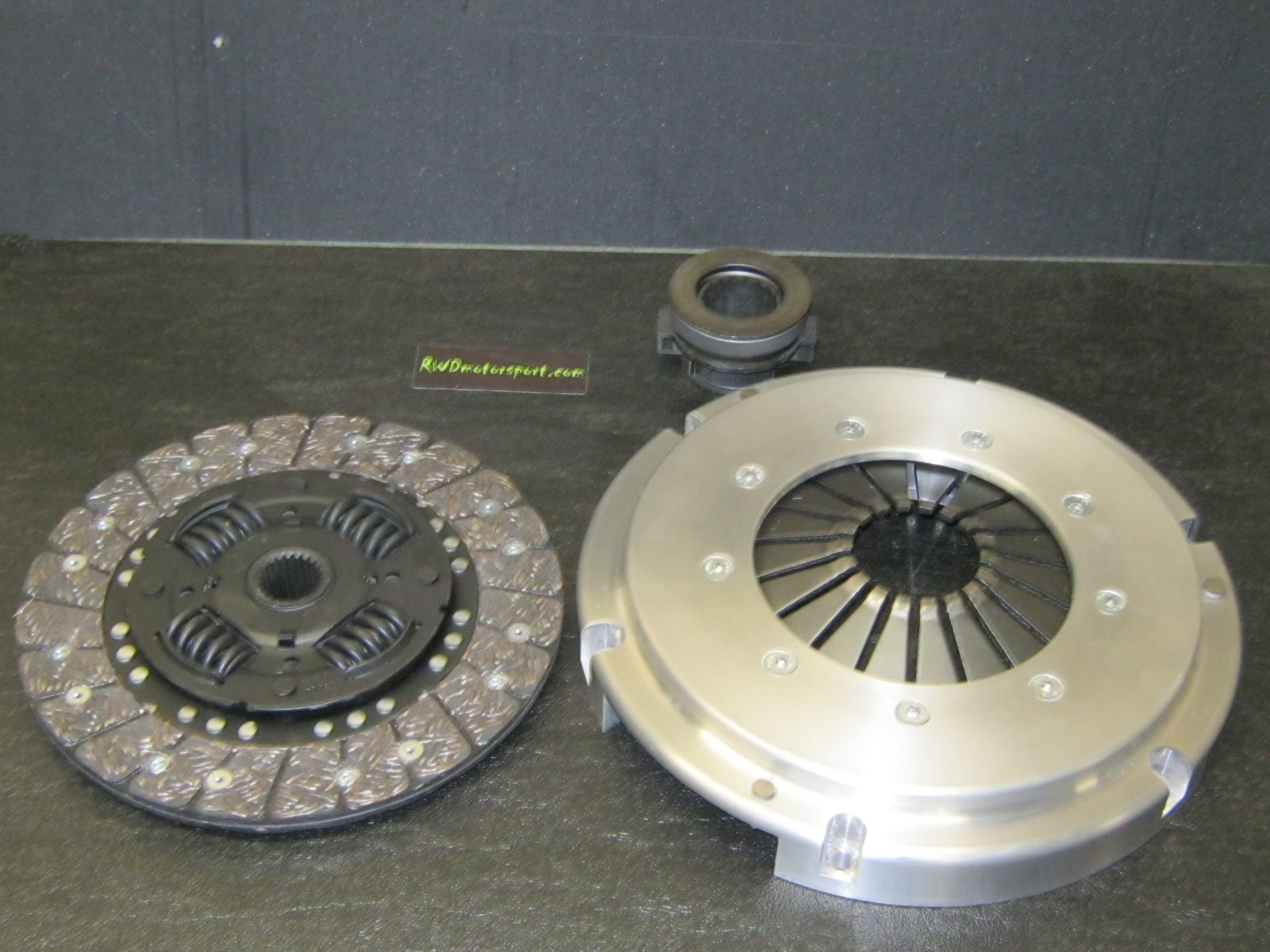

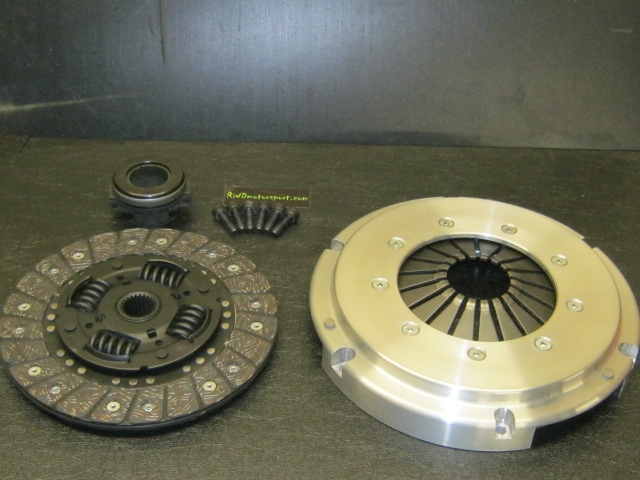

This high quality heavy duty clutch kit kit includes an uprated clutch cover, release bearing and friction disc
Specially made for RWD Motorsport. Comprising a heavy duty aluminium clutch cover, retaining bolts, bearing and heavy duty clutch friction disc. Direct replacement for the difficult to get hold of AP Racing clutch cover CP2511-1 and clutch disc CP5351-1.
Please note that if you are using this clutch with the Duratec Engine to Ford Gearbox Hydraulic Clutch Bellhousing or Ford Type 9 Hydraulic Release Bearing Kit or Borg Warner T5 Hydraulic Release Bearing Kit since this clutch is 10mm less in height you will need to order 2 x Hydraulic Release Bearing Kit Additional 5mm Shims. Please read the Fitting Instructions for more information and before final build.
Suitable for use with any Ford Type 9 or 4 speed gearbox and engine combination including:
Duratec Engine to Ford Gearbox Cable Clutch Bellhousing (if using Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate)
Duratec Engine to Ford Gearbox Hydraulic Clutch Bellhousing(if using Ford Duratec lightweight Steel Flywheel – 8 1/2″ Clutch Plate)
Pinto or Cosworth to Borg Warner T5 Bellhousing
RS2000 Type Bellhousing (cable clutch)
Sierra Direct Replacement Cable Clutch Bellhousing
Sierra Direct Replacement Hydraulic Clutch Bellhousing
VW / Audi 1.8 Litre to Ford Type 9 Bellhousing
Specification and Application
| Components | Heavy Duty Aluminium Clutch Pressure Plate Heavy Duty Organic Clutch Plate Release Bearing Clutch Cover Cap Head Bolts |
| Clutch Torque Capacity | 280 ft lb / 380 Nm |
| Clutch Friction Disc Thickness | 0.314″ / 8.0mm |
| FrictionDisc Diameter | 8.5″ / 215mm |
| Splines | 23 |
| Input Shaft Diameter | 1″ or 25.4mm |
| Height from crankshaft face to clutch diaphragm fingers | 58mm |
| Height from crankshaft face to clutch diaphragm fingers when worn | Approximately 62mm |
| Compatible Lightened Flywheels | Ford Duratec Lightweight Steel Flywheel – 8 1/2″ Clutch Plate Ford Zetec E Lightweight Steel Flywheel Vauxhall 2.0XE Lightweight Steel Flywheel Ford Cover Ford Pinto Lightweight Steel Flywheel – 8 1/2″ Clutch Plate Ford Zetec SE / Sigma Lightweight Steel Flywheel Pinto Clutch |
| Gearbox | Ford 4 speed (rocket) Ford Type 9 Borg Warner T5 * Borg Warner T5 information |
| Applications | Kit cars Rally / race Fast road |
* SIerra Cosworth 23 spline 1″ input shaft only
Additional information
| Weight | 4.5 kg |
|---|
