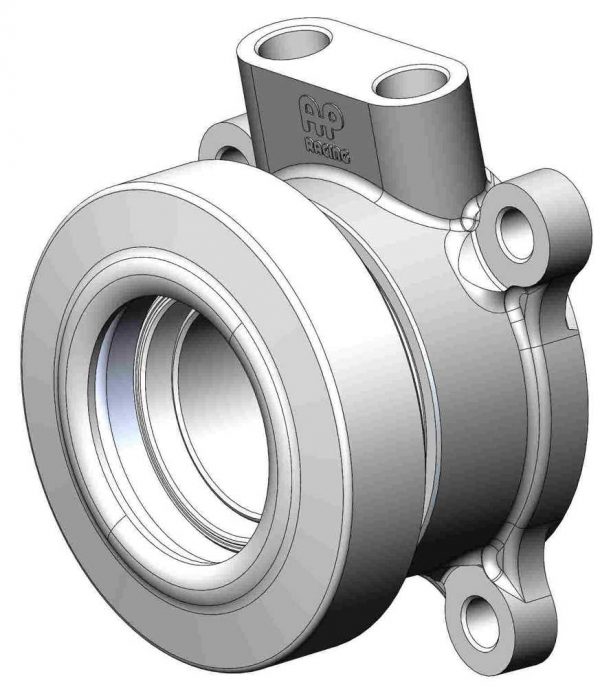

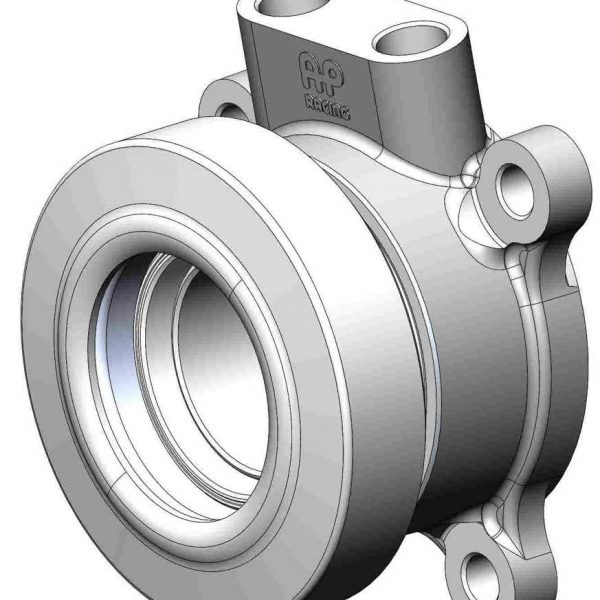

AP Racing Hydraulic Clutch Concentric Slave Cylinder CP6859-54
AP Racing Hydraulic Clutch Concentric Slave Cylinder CP6859-54
£350.00
Concentric heavy duty release bearing manufactured by AP Racing. To fit our Millington Diamond to Ford Gearbox Bellhousing.
| Component | CP6859-54 Slave Cylinder |
| Includes | Concentric slave cylinder |
| Bellhousing | Millington Diamond to Ford Gearbox Bellhousing Ford Coyote V8 Engine to Quaife Bellhousing |
| Diameter | Ø54mm Fulcrum. For Outer Rotating Race Bearing |
| Stroke | 18mm |
| Applications | MkI/II Escort Westfield Caterham Kit Car |
Ensure that the unit is installed in the correct position, with the bleed port uppermost. All fittings intended to seat at the bottom of the hydraulic ports must have an included angle of 90°.
When large diameter splines are used please check clearance of the spline in the slave cylinder body. Larger splines also have an increased driven plates hub boss. Please check the clearance of the driven plates at maximum slave travel.
Additional information
| Weight | 1 kg |
|---|
Products that you might find interesting

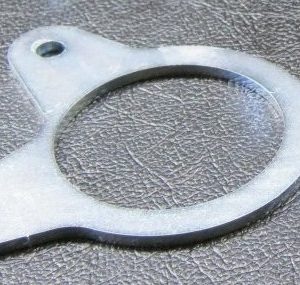

Hydraulic Release Bearing Kit Additional 5mm Shims
