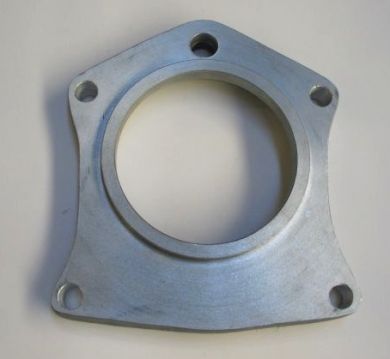

Adapter Plate for Ford Bellhousing to 2.8 Ford Gearbox
Adapter Plate for Ford Bellhousing to 2.8 Ford Gearbox
£65.00 – £75.00

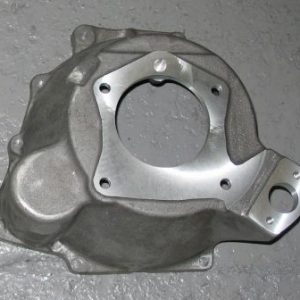

Adapter plate which fits between any of our Ford gearbox bellhousings and a Type 9 (Sierra) 2.8 gearbox. The 2.8 gearbox uses a longer 1st motion shaft hence the need for an adaptor plate.
The plate has a thickness of 20mm, which accommodates most input shaft additional lengths between 20mm and 32mm (some Caterham variants have the shorter length).
Some heavy duty gearboxes have a boss for a heavy duty layshaft bearing. Please check your gearbox and choose the option below if you require an additional recess for this.
You will also need longer bolts for this conversion.
Machined to order (lead time approximately 3 days).
Additional information
Weight | N/A |
---|---|
Extra Machining |
Properly engineered bit of kit, great fit & finish.
Fitment of 2.8 T9 gearbox to 2ltr Zetec, using RS alloy bell housing.
Bought the longer bolts too, typical cap head style.... Fitted ok, but 8-10mm too long IMHO.
Rapid dispatch & delivery to me in France,
Purchased to allow a Caterham 6 gearbox with a long input shaft to mate with a 'short shaft' bellhousing.
Extra machining for uprated layshaft bearing was asked for and it was all delivered within 4 working days.
It is a quality billet aluminium adapter that does the job at a reasonable price. The only issue was that the Caterham layshaft bearing cut out was slightly too high for the shaft. Some minor adjustment with a sanding wheel solved the problem.
Recommend product and an efficient company to deal with.
Really well machined and does exactly what it needs to do. No shortening of input shaft required on my 2.8 box like you need do with some of the other spacers on the market. Highly recommended.
Well made accurate adaptor, supply was quick and well packaged. Although the one supplied originally was incorrect, this was addressed quickly with no drama. The adapter is a very good tight fit on my type 9 gearbox which is reassuring knowing it has been machined to a high standard.
fits perfact
Related Products
Honda K20 and K24 to Ford Type 9 Bellhousing
Honda K20 and K24 to Ford Type 9 Bellhousing£367.50Select options
Honda K20 and K24 to Ford Type 9 Bellhousing
Honda K20 and K24 to Ford Type 9 BellhousingThis bellhousing will mate the Honda K20 or K24 engine to the Ford Type 9 gearbox, Ford 4 speed or any sequential gearbox that uses the Ford Type 9 pattern.
£367.50Select options
Longer 10mm Cap Head Bolts (4)
Longer 10mm Cap Head Bolts (4)4 10mm x 1 1/2mm pitch longer cap head bolts for when a quick release bellhousing together with the 20mm adapter plate is specified. These bolts allow the bellhousing to be attached to the Ford gearbox externally straight through the original tapped 12mm holes of the Ford gearbox, through the adapter plate and screwed into the 10mm tapped holes of the quick release bellhousing.
VW / Audi 1.8 Litre to Ford Type 9 Bellhousing
VW / Audi 1.8 Litre to Ford Type 9 Bellhousing£275.63Add to basket
VW / Audi 1.8 Litre to Ford Type 9 Bellhousing
VW / Audi 1.8 Litre to Ford Type 9 BellhousingThis bellhousing will mate the Volkswagen, Audi, SEAT or Skoda 1.8 litre 20 valve turbocharged engines to the Ford Type 9 (Sierra) gearbox.
£275.63Add to basket
Toyota 4AGE to Ford Gearbox Bellhousing
Toyota 4AGE to Ford Gearbox Bellhousing£231.00Select options
Toyota 4AGE to Ford Gearbox Bellhousing
Toyota 4AGE to Ford Gearbox BellhousingThis bellhousing will mate the Toyota 4AGE engine, in either 16 valve or 20 valve format, to the Ford Type E (Rocket) 4 speed or Ford Type 9 (Sierra) 5 speed gearbox.
£231.00Select options
Duratec Engine to Ford Gearbox Hydraulic Clutch Bellhousing
Duratec Engine to Ford Gearbox Hydraulic Clutch Bellhousing£260.00Select options
Duratec Engine to Ford Gearbox Hydraulic Clutch Bellhousing
Duratec Engine to Ford Gearbox Hydraulic Clutch BellhousingThis bellhousing allows the 1.8l, 2.0l or 2.3l Duratec engine to be connected to the Ford Type E (Rocket 4 sp) and Type 9 (Sierra 5 sp) gearboxes using a hydraulic clutch.
£260.00Select options
Duratec Engine to Ford Gearbox Cable Clutch Bellhousing
Duratec Engine to Ford Gearbox Cable Clutch Bellhousing£240.00Select options
Duratec Engine to Ford Gearbox Cable Clutch Bellhousing
Duratec Engine to Ford Gearbox Cable Clutch BellhousingThis bellhousing allows the 1.8l, 2.0l or 2.3l Duratec engine to be connected to the Ford Type E (Rocket 4 sp) and Type 9 (Sierra 5 sp) gearboxes using a cable clutch.
£240.00Select options
Sierra Direct Replacement Hydraulic Clutch Bellhousing
Sierra Direct Replacement Hydraulic Clutch Bellhousing£214.99Add to basket
Sierra Direct Replacement Hydraulic Clutch Bellhousing
Sierra Direct Replacement Hydraulic Clutch BellhousingThis bellhousing is a direct replacement for the cast iron Ford Sierra item. Based on our Cable Clutch Bellhousing but redesigned for hydraulic actuation, retaining the cable release arm.
£214.99Add to basket
Zetec SE to Ford Gearbox Bellhousing
Zetec SE to Ford Gearbox Bellhousing£189.00Add to basket
Zetec SE to Ford Gearbox Bellhousing
Zetec SE to Ford Gearbox BellhousingThis bellhousing will mate the Ford Zetec SE (Sigma)* engine to the Ford Type E (Rocket) 4 speed or Ford Type 9 (Sierra) 5 speed gearbox.
£189.00Add to basket
Longer Fine Cap Head Bolts for 2.8 Gearbox (4)
Longer Fine Cap Head Bolts for 2.8 Gearbox (4)For use with the Adaptor Plate for RS2000 Type Bellhousing to 2.8 Gearbox.
Sierra Direct Replacement Cable Clutch Bellhousing
Sierra Direct Replacement Cable Clutch Bellhousing£189.00Add to basket
Sierra Direct Replacement Cable Clutch Bellhousing
Sierra Direct Replacement Cable Clutch BellhousingThis bellhousing is a direct replacement for the cast iron Ford Sierra item.
£189.00Add to basket
Vauxhall 2.0XE Engine to Ford Gearbox Cable Clutch Bellhousing
Vauxhall 2.0XE Engine to Ford Gearbox Cable Clutch Bellhousing£168.00Select options
Vauxhall 2.0XE Engine to Ford Gearbox Cable Clutch Bellhousing
Vauxhall 2.0XE Engine to Ford Gearbox Cable Clutch BellhousingThis bellhousing allows the Vauxhall 2.0XE Engine to be connected to the Ford Type E (Rocket 4 sp) and Type 9 (Sierra 5 sp) gearboxes using a cable clutch.
£168.00Select options
2000E Gearbox with Cable Clutch Bellhousing
2000E Gearbox with Cable Clutch Bellhousing£168.00Add to basket
2000E Gearbox with Cable Clutch Bellhousing
2000E Gearbox with Cable Clutch BellhousingFor use with the 2000E 3 rail gearbox when utilising a cable clutch.
£168.00Add to basket
Products that you might find interesting

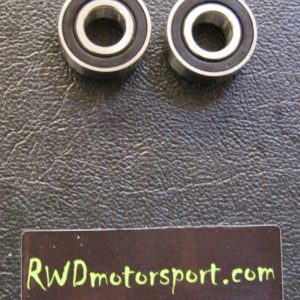

Duratec Engine to Toyota W56 Gearbox Spigot Bearing
Duratec Engine to Toyota W56 Gearbox Spigot BearingDuratec Engine to Toyota W56 Gearbox Spigot Bearing
Duratec Engine to Toyota W56 Gearbox Spigot BearingConverts crankshaft to accommodate the Toyota W56 5 Speed Gearbox in a RWD installation. Needed in order to support the longer length of the Toyota gearbox input shaft. Fits in standard recess in crankshaft.

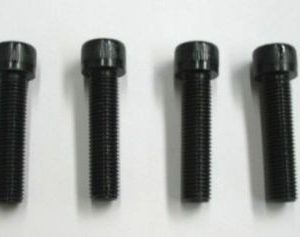

Fine Cap Head Bolts (4)
Fine Cap Head Bolts (4)4 12mm x 1 1/2mm pitch x 40mm long fine cap head bolts for when a standard fitment bellhousing is specified. These bolts allow the bellhousing to be attached to the Ford gearbox internally.
2000e Clutch Release Bearing
2000e Clutch Release Bearing2000e clutch release bearing. Smaller internal diameter to suit the 7/8″ input shaft sleeve.

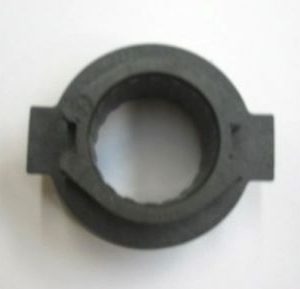

RS2000 Clutch Release Bearing
