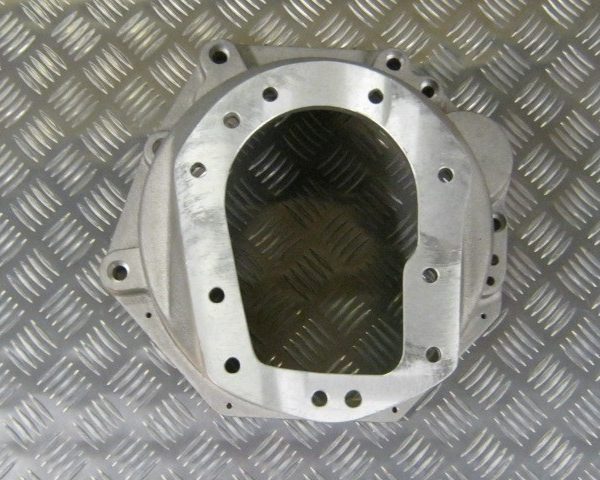

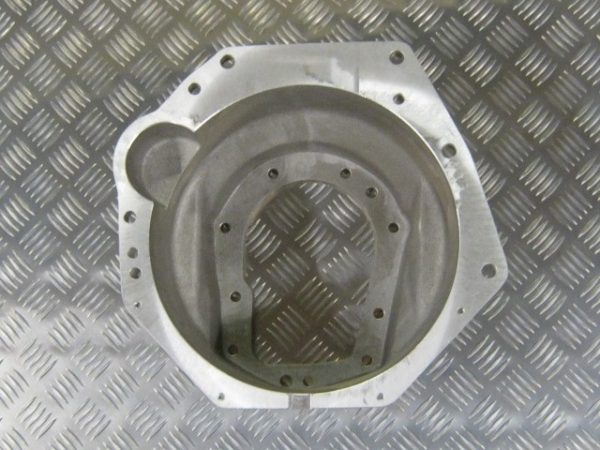

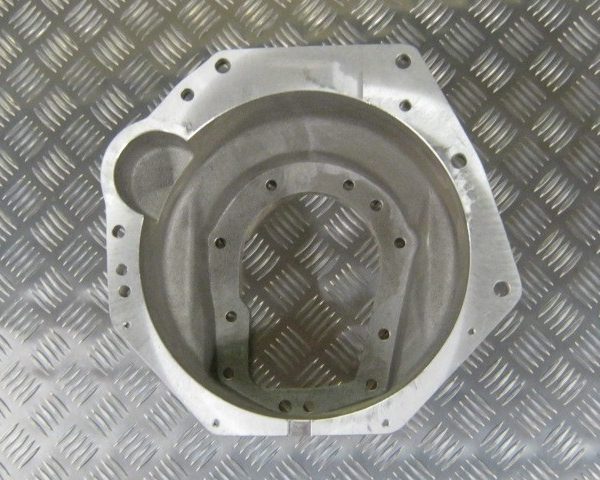

1KR-FE Toyota Engine to Toyota W Series Gearbox Bellhousing
1KR-FE Toyota Engine to Toyota W Series Gearbox Bellhousing
£231.00
Allows the 1.0 litre Toyota 1KR-FE engine to be mated to the range of Toyota W series 5 speed gearboxes available in a longitudinal installation.
Our bellhousing connects the Toyota 1KR-FE 3 cylinder 1 litre engine to any of the range of gearboxes displayed below.
Specification and Application
| Component | Toyota 1KR-FE 1.0 to Toyota W series gearbox |
| Type | Bare casting Machined on front and rear faces |
| Actuation | Hydraulic slave cylinder |
| Gearbox to Engine Face | 6.496 inch (165mm) |
| Engines | Toyota 1KR-FE |
| Gearbox | Toyota W series including: W56 W58 |
| Applications | Kit cars Rally / race |
Additional information
| Weight | 5.5 kg |
|---|
