Duratec Engine to Toyota W56 Gearbox Spigot Bearing
Duratec Engine to Toyota W56 Gearbox Spigot Bearing
£13.00
Converts crankshaft to accommodate the Toyota W56 5 Speed Gearbox in a RWD installation. Needed in order to support the longer length of the Toyota gearbox input shaft. Fits in standard recess in crankshaft.

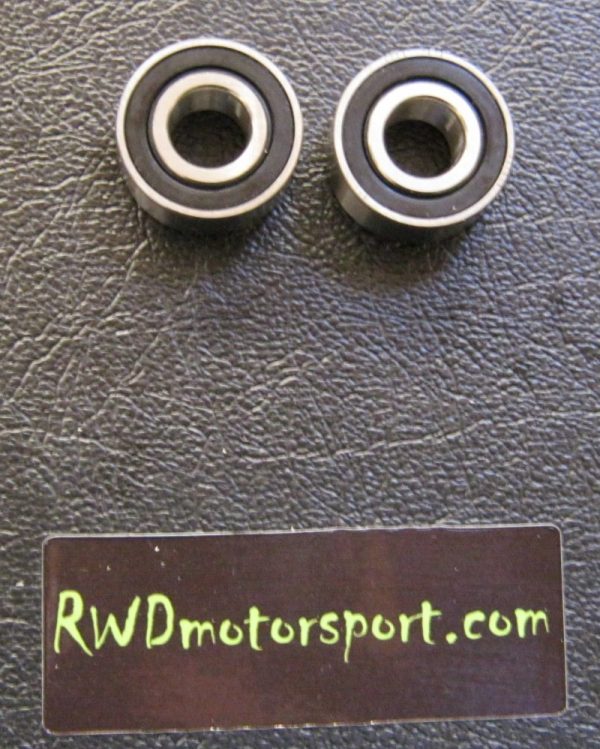

Consists of 2 roller bearing races mounted end to end. Allows a Duratec engine to be connected to the Toyota W range of gearboxes using our Duratec Engine to Toyota W Series Gearbox Bellhousing.
Internal spigot diameter is 12mm (0.47″) – Toyota W range of gearboxes
External spigot diameter is 21mm (0.83″)
Length is 6mm (0.24″) x 2
Additional information
| Weight | 0.1 kg |
|---|
